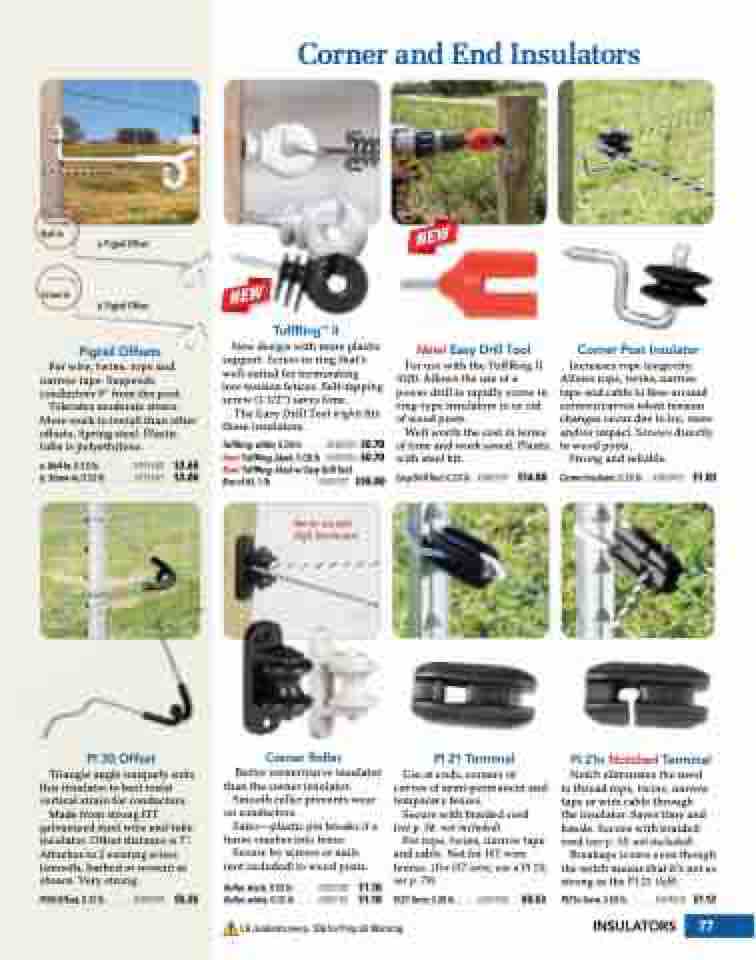

Page 77 - 2025 Premier Digital Fence Catalog

Nail-In
a. Pigtail Offset
Screw-In
b. Pigtail Offset
Pigtail Offsets
For wire, twine, rope and
narrow tape. Suspends
conductors 9" from the post.
Tolerates moderate strain.
More work to install than other
offsets. Spring steel. Plastic
tube is polyethylene.
a. Nail-In, 0.55 lb. .................. #391600 $2.65
b. Screw-In, 0.55 lb................#391601 $3.00
PI 30 Offset
Triangle angle uniquely suits
this insulator to best resist
vertical strain for conductors.
Made from strong HT
galvanized steel wire and tube
insulator. Offset distance is 7".
Attaches to 2 existing wires
(smooth, barbed or woven) as
shown. Very strong.
PI30 Offset, 0.32 lb. ..............#390000 $5.25
Corner and End Insulators
TuffRing™ II
New design with more plastic
support. Screw-in ring that’s
well-suited for terminating
low-tension fences. Self-tapping
screw (1-1/2") saves time.
The Easy Drill Tool (right) fits
these insulators.
TuffRing, white, 0.08 lb. .............#380705 New! TuffRing, black, 0.08 lb....#380706 $0.70
$0.70
New! TuffRing, black w/ Easy Drill Tool,
Box of 65, 5 lb. ........................#380707 $38.80
New! Easy Drill Tool
For use with the TuffRing II
(left). Allows the use of a
power drill to rapidly screw in
ring-type insulators in or out
of wood posts.
Well worth the cost in terms
of time and work saved. Plastic
with steel bit.
Easy Drill Tool, 0.20 lb....#380709 $14.00
Corner Post Insulator
Increases rope longevity.
Allows rope, twine, narrow
tape and cable to flow around
corners/curves when tension
changes occur due to ice, snow
and/or impact. Screws directly
to wood posts.
Strong and reliable.
Corner Insulator, 0.20 lb..... #380900 $1.03
Not for use with
High-Tensile wire.
Corner Roller
Better corner/curve insulator
than the corner insulator.
Smooth roller prevents wear
on conductors.
Safer—plastic pin breaks if a
horse crashes into fence.
Secure by screws or nails
(not included) to wood posts.
Roller, black, 0.05 lb............. #380100 Roller, white, 0.05 lb............ #380105 $1.10
$1.10
CA residents see p. 106 for Prop 65 Warning.
PI 21 Terminal
Use at ends, corners or
curves of semi-permanent and
temporary fences.
Secure with braided cord
(see p. 58, not included).
For rope, twine, narrow tape
and cable. Not for HT wire
fences. (For HT wire, use a PI 20,
see p. 79).
PI21 Term, 0.08 lb............#369100 $0.53
PI 21n Notched Terminal
Notch eliminates the need
to thread rope, twine, narrow
tape or wire cable through
the insulator. Saves time and
hassle. Secure with braided
cord (see p. 58, not included).
Breakage is rare even though
the notch means that it’s not as
strong as the PI 21 (left).
PI21n Term, 0.08 lb. .............. #369200 $1.12
INSULATORS
77
