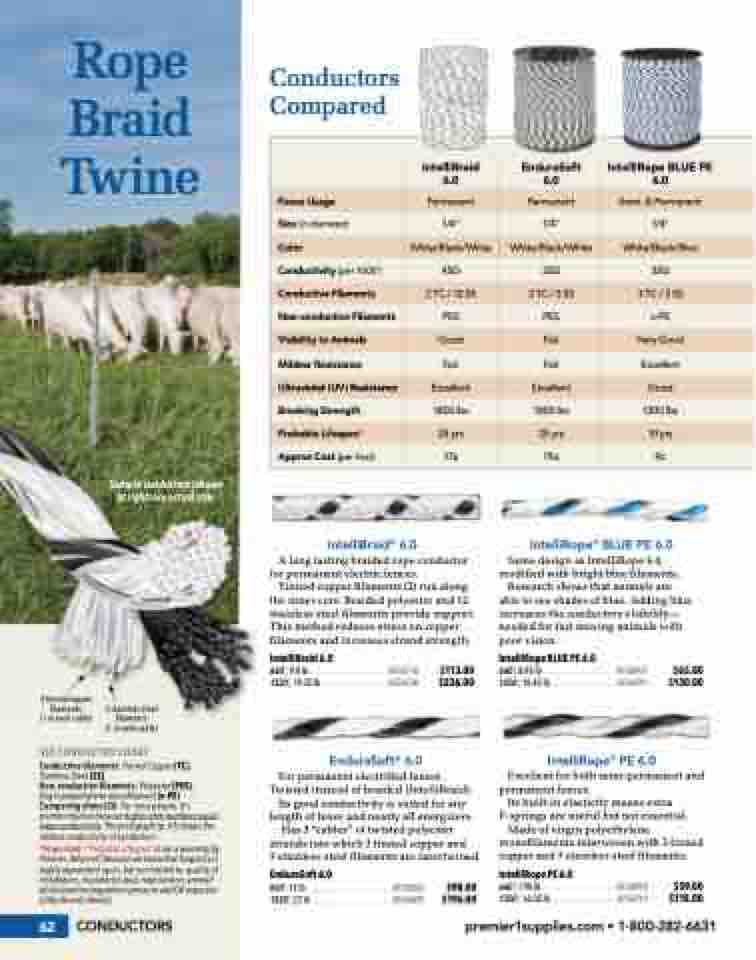

Page 62 - 2025 Premier Digital Fence Catalog

Rope
Braid
Twine
Sample conductors (shown
at right) are actual size.
3 tinned copper
filaments
(1 in each cable)
3 stainless steel
filaments
(1 in each cable)
SEE CONDUCTOR CHART
Conductive filaments: Tinned Copper (TC),
Stainless Steel (SS)
Non-conductive filaments: Polyester (PES),
Virgin polyethylene monofilament (v-PE)
Comparing ohms (Ω): For most people, it’s
counterintuitive because higher ohm numbers equal
lower conductivity. The pictograph (p. 61) shows the
relative conductivity of conductors.
*Important: “Probable Lifespan” is not a warranty by
Premier. Why not? Because we know that longevity is
highly dependent upon, but not limited to, quality of
installation, insulator(s) used, rope tension, animal/
wind/snow/ice/vegetation pressure and UV exposure
(altitude and climate).
62 CONDUCTORS Conductors
Compared
IntelliBraid EnduraSoft IntelliRope BLUE PE
6.0 6.0 6.0
Fence Usage Permanent Permanent Semi- & Permanent
Size (in diameter) 1/4" 1/4" 1/4"
Color White/Black/White White/Black/White White/Black/Blue
Conductivity (per 1000') 45Ω 32Ω 32Ω
Conductive Filaments 2 TC / 12 SS 3 TC / 3 SS 3 TC / 3 SS
Non-conductive Filaments PES PES v-PE
Visibility to Animals Good Fair Very Good
Mildew Resistance Fair Fair Excellent
Ultraviolet (UV) Resistance Excellent Excellent Good
Breaking Strength 1800 lbs 1800 lbs 1200 lbs
Probable Lifespan*
25 yrs 25 yrs 10 yrs
Approx Cost (per foot) 17¢ 15¢ 9¢
IntelliBraid® 6.0
A long lasting braided rope conductor
for permanent electric fences.
Tinned copper filaments (2) run along
the inner core. Braided polyester and 12
stainless steel filaments provide support.
This method reduces stress on copper
filaments and increases strand strength.
IntelliBraid 6.0
660', 9.8 lb. ......................................... #256710 $113.00
1320', 19.35 lb...................................#256730 $226.00
IntelliRope® BLUE PE 6.0
Same design as IntelliRope 6.0,
modified with bright blue filaments.
Research shows that animals are
able to see shades of blue. Adding blue
increases the conductors visibility—
needed for fast moving animals with
poor vision.
IntelliRope BLUE PE 6.0
660', 8.95 lb. .......................................#256901 $65.00
1320', 18.45 lb...................................#256911 $130.00
EnduraSoft® 6.0
For permanent electrified fences.
Twisted instead of braided (IntelliBraid).
Its good conductivity is suited for any
length of fence and nearly all energizers.
Has 3 “cables” of twisted polyester
strands into which 3 tinned copper and
3 stainless steel filaments are intertwined.
EnduraSoft 6.0
660', 12 lb............................................. #256500 $98.00
1320', 22 lb. .......................................... #256600 $196.00
IntelliRope® PE 6.0
Excellent for both semi-permanent and
permanent fences.
Its built-in elasticity means extra
P-springs are useful but not essential.
Made of virgin polyethylene
monofilaments interwoven with 3 tinned
copper and 3 stainless steel filaments.
IntelliRope PE 6.0
660', 7.90 lb. .......................................#256900 $59.00
1320', 16.05 lb...................................#256910 $118.00
premier1supplies.com • 1-800-282-6631
