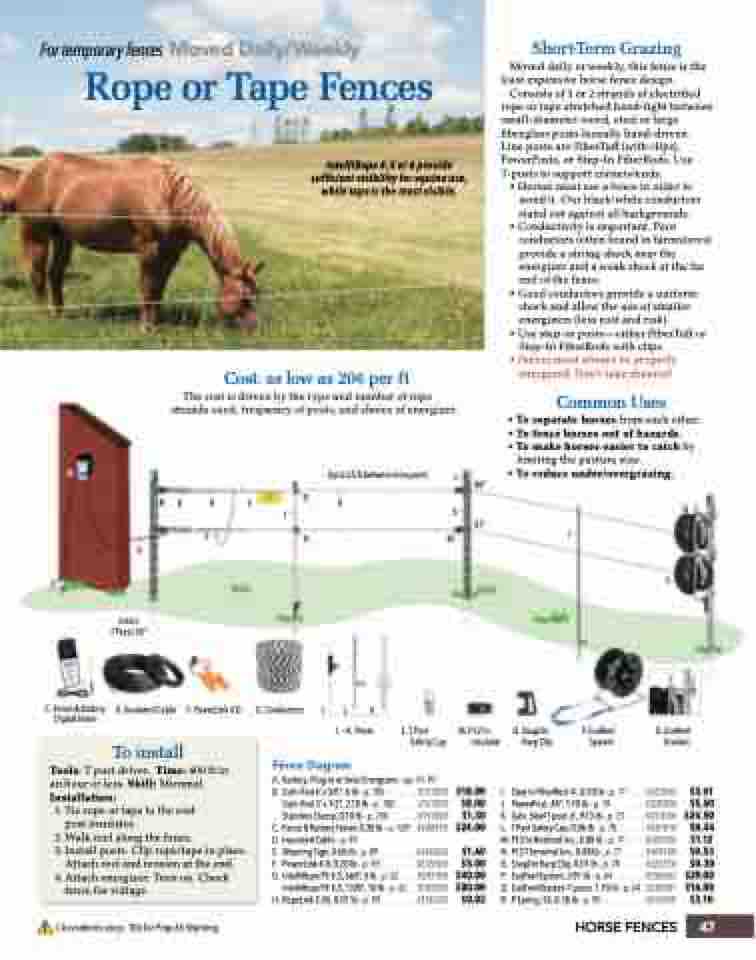

Page 47 - 2025 Premier Digital Fence Catalog

For temporary fences Moved Daily/Weekly
Rope or Tape Fences
IntelliRope 4.5 or 6 provide
sufficient visibility for equine use,
while tape is the most visible.
Cost: as low as 20¢ per ft
The cost is driven by the type and number of rope
strands used, frequency of posts, and choice of energizer. A
N
R O
H
E
I
Up to 25 ft between line posts
G
F
O
Short-Term Grazing
Moved daily or weekly, this fence is the
least expensive horse fence design.
Consists of 1 or 2 strands of electrified
rope or tape stretched hand-tight between
small-diameter wood, steel or large
fiberglass posts (usually hand-driven.
Line posts are FiberTuff (with clips),
PowerPosts, or Step-In FiberRods. Use
T-posts to support corners/ends.
• Horses must see a fence in order to
avoid it. Our black/white conductors
stand out against all backgrounds.
• Conductivity is important. Poor
conductors (often found in farmstores)
provide a strong shock near the
energizer and a weak shock at the far
end of the fence.
• Good conductors provide a uniform
shock and allow the use of smaller
energizers (less cost and risk).
• Use step-in posts—either FiberTuff or
Step-In FiberRods with clips.
• Fences must always be properly
energized. Don’t take chances!
L
Common Uses
• To separate horses from each other.
• To fence horses out of hazards.
• To make horses easier to catch by
limiting the pasture size.
• To reduce under/overgrazing.
48"
K
Q
27"
M J
B
D
Insert
T Posts 18"
P
C. Fence & Battery
Digital Tester
I. J. K.
To install
Tools: T post driver. Time: 400 ft in
an hour or less. Skill: Minimal.
Installation:
1. Tie rope or tape to the end
post insulator.
2. Walk reel along the fence.
3. Install posts. Clip rope/tape in place.
Attach reel and tension at the end.
4. Attach energizer. Turn on. Check
fence for voltage.
D. Insulated Cable F. PowerLink 4.0 G. Conductors
I. – K. Posts L. T Post
Safety Cap
Fence Diagram
A. B. Battery, Plug-in or Solar Energizers – pp. 91–97
Galv. Rod 6' x 5/8", 6 lb – p. 100. .................#151000 Galv. Rod 3' x 1/2", 2.10 lb – p. 100............#151200 Stainless Clamp, 0.10 lb – p. 100. ...............#151800 C. D. E. F. G. Fence & Battery Tester, 0.30 lb – p. 100. ....#200010 Insulated Cable – p. 89
Warning Sign, 0.06 lb – p. 89.................... #346000 PowerLink 4.0, 0.20 lb – p. 90................... #335500 IntelliRope PE 4.5, 660', 5 lb – p. 62..........#245100 IntelliRope PE 4.5, 1320', 10 lb – p. 62......#245200 H. RopeLink 2.45, 0.01 lb – p. 90....................#256220 CA residents see p. 106 for Prop 65 Warning.
M. PI 21n
Insulator
O. SnapOn
Harp Clip
P. EcoReel
System
$18.00
$8.00
$1.30
$24.00
$1.60
$5.00
$40.00
$80.00
$0.82
Q. EcoReel
Bracket
I. Step-In FiberRod, 4', 0.50 lb – p. 71...........#321844 J. PowerPost, 48", 1.10 lb – p. 70.................. #320830 K. Galv. Steel T post, 6', 9.13 lb – p. 73............#327600 L. T Post Safety Cap, 0.06 lb – p. 78. ...............#381010 M. PI 21n Notched Ins., 0.08 lb – p. 77. .......... #369200 N. PI 21 Terminal Ins., 0.08 lb – p. 77.............#369100 O. SnapOn Harp Clip, 0.01 lb – p. 78..............#325310 P. EcoReel System, 3.91 lb – p. 64................. #238603 Q. EcoReel Bracket—T posts, 1.70 lb – p. 64. ...#238501 R. P Spring, SS, 0.30 lb – p. 90........................#255010 HORSE FENCES $3.61
$5.50
$24.50
$0.44
$1.12
$0.53
$0.30
$29.00
$16.00
$3.10
47
