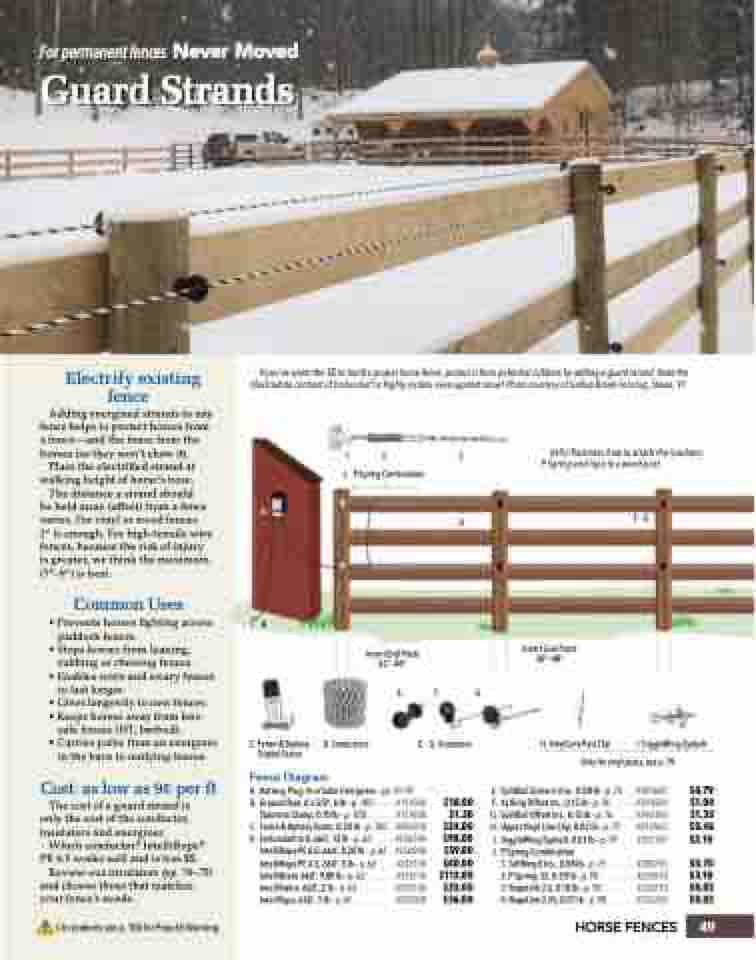

Page 49 - 2025 Premier Digital Fence Catalog

For permanent fences Never Moved
Guard Strands
Electrify existing
fence
Adding energized strands to any
fence helps to protect horses from
a fence—and the fence from the
horses (so they won’t chew it).
Place the electrified strand at
walking height of horse’s nose.
The distance a strand should
be held away (offset) from a fence
varies. For vinyl or wood fences
2" is enough. For high-tensile wire
fences, because the risk of injury
is greater, we think the maximum
(7"–9") is best.
Common Uses
• Prevents horses fighting across
paddock fences.
• Stops horses from leaning,
rubbing or chewing fences.
• Enables worn and weary fences
to last longer.
• Gives longevity to new fences.
• Keeps horses away from less-
safe fences (HT, barbed).
• Carries pulse from an energizer
in the barn to outlying fences.
Cost: as low as 9¢ per ft
The cost of a guard strand is
only the cost of the conductor,
insulators and energizer.
Which conductor? IntelliRope®
PE 4.5 works well and is less $$.
Review our insulators (pp. 74–79)
and choose those that matches
your fence’s needs.
CA residents see p. 106 for Prop 65 Warning.
If you’ve spent the $$ to build a proper horse fence, protect it from potential cribbers by adding a guard strand. Note the
black/white contrast of EnduraSoft is highly visible, even against snow! Photo courtesy of Gallup Brook Fencing, Stowe, VT.
1. 2. 3.
J. P Spring Combination
(left) Illustrates how to attach the insulator,
P Spring and rope to a wood post.
A
E – G
D
B
Insert End Posts
42"–48"
Insert Line Posts
30"–48"
E. F. G.
C. Fence & Battery
Digital Tester
D. Conductors
Fence Diagram
A. B. Battery, Plug-in or Solar Energizers – pp. 91–97
Ground Rod, 6' x 5/8", 6 lb – p. 100. ............#151000 Stainless Clamp, 0.10 lb – p. 100. ................#151800 C. D. Fence & Battery Tester, 0.30 lb – p. 100. .... #200010 EnduraSoft 6.0, 660', 12 lb – p. 62.............#256500 IntelliRope PE 6.0, 660', 8.20 lb – p. 62. ....#256900 IntelliRope PE 4.5, 660', 5 lb – p. 62...........#245100 IntelliBraid, 660', 9.80 lb – p. 62.................#256710 IntelliTwine, 660', 2 lb – p. 63. ....................#253500 IntelliTape, 660', 3 lb – p. 61. ...................... #257020 E. - G. Insulators
$18.00
$1.30
$24.00
$98.00
$59.00
$40.00
$113.00
$23.00
$36.00
H. Vinyl Line Post Clip
I. ToggleWing Eyebolt
Only for vinyl posts, see p. 79
E. SplitBall Screw-In Ins., 0.08 lb – p. 75. .......#380600 F. XL Ring Offset Ins., 0.15 lb – p. 76..............#390500 G. SplitBall Offset Ins., 0.15 lb – p. 76. ............#390300 H. Upper Vinyl Line Clip, 0.02 lb – p. 79.........#392005 I. ToggleWing Eyebolt, 0.01 lb – p. 79.......... #392100 J. P Spring Combination
1. TuffRing II Ins., 0.08 lb – p. 77................ #380705 2. P Spring, SS, 0.30 lb – p. 90.................... #255010 3. RopeLink 2.6, 0.10 lb – p. 90. .................. #256210 4. RopeLink 2.45, 0.01 lb – p. 90. ............... #256220 HORSE FENCES $0.79
$1.04
$1.35
$0.46
$2.10
$0.70
$3.10
$0.82
$0.82
49
