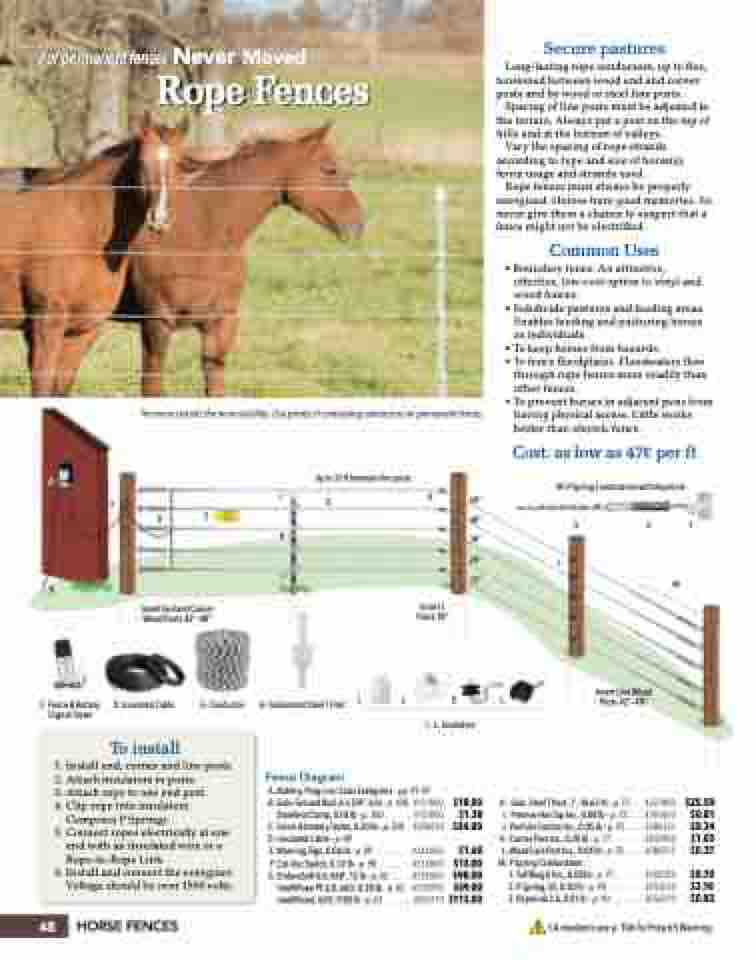

Page 48 - 2025 Premier Digital Fence Catalog

For permanent fences Never Moved
Rope Fences
The more strands the more visibility. Use plenty of contrasting conductors on permanent fences.
Up to 35 ft between line posts
A
B
F
G
D
E
Insert End and Corner
Wood Posts 42"–48"
I
H
J
K
60"
48"
36"
24"
12"
Secure pastures
Long-lasting rope conductors, up to five,
tensioned between wood end and corner
posts and by wood or steel line posts.
Spacing of line posts must be adjusted to
the terrain. Always put a post on the top of
hills and at the bottom of valleys.
Vary the spacing of rope strands
according to type and size of horse(s),
fence usage and strands used.
Rope fences must always be properly
energized. Horses have good memories. So
never give them a chance to suspect that a
fence might not be electrified.
Common Uses
• Boundary fence. An attractive,
effective, low-cost option to vinyl and
wood fences.
• Subdivide pastures and feeding areas.
Enables feeding and pasturing horses
as individuals.
• To keep horses from hazards.
• To fence floodplains. Floodwaters flow
through rope fences more readily than
other fences.
• To prevent horses in adjacent pens from
having physical access. Little works
better than electric fence.
Cost: as low as 47¢ per ft
M. P Spring Combination with RopeLink
3. 2. 1.
L
M
C. Fence & Battery
Digital Tester
D. Insulated Cable G. Conductor Insert T
Posts 18"
I. K. L.
J.
H. Galvanized Steel T Post
Insert Line Wood
Posts 42"–48"
I. - L. Insulators
To install
1. Install end, corner and line posts.
2. Attach insulators to posts.
3. Attach rope to one end post.
4. Clip rope into insulators.
Compress P Springs.
5. Connect ropes electrically at one
end with an insulated wire or a
Rope-to-Rope Link.
6. Install and connect the energizer.
Voltage should be over 1500 volts.
Fence Diagram
A. Battery, Plug-in or Solar Energizers – pp. 91–97
B. Galv. Ground Rod, 6' x 5/8", 6 lb – p. 100... #151000 Stainless Clamp, 0.10 lb – p. 100................ #151800 C. Fence & Battery Tester, 0.30 lb – p. 100.....#200010 D. Insulated Cable – p. 89
E. Warning Sign, 0.06 lb – p. 89. .....................#346000 F. Cut-Out Switch, 0.32 lb – p. 90...................#333000 G. EnduraSoft 6.0, 660', 12 lb – p. 62.............#256500 IntelliRope PE 6.0, 660', 8.20 lb – p. 62. ....#256900 IntelliBraid, 660', 9.80 lb – p. 63................ #256710 $18.00
$1.30
$24.00
$1.60
$13.00
$98.00
$59.00
$113.00
48 HORSE FENCES H. Galv. Steel T Post, 7', 10.63 lb – p. 73........#327800 I. Premier Hot Top Ins., 0.08 lb – p. 75. .........#381000 J. Premier Combo Ins., 0.05 lb – p. 75...........#380321 K. Corner Post Ins., 0.20 lb – p. 77..................#380900 L. Wood Line Post Ins., 0.04 lb – p. 75. ........... #380712 M. P Spring Combination
1. TuffRing II Ins., 0.08 lb – p. 77. ................#380705 2. P Spring, SS, 0.30 lb – p. 90. ....................#255010 3. RopeLink 2.6, 0.01 lb – p. 90. ..................#256210 $25.50
$0.81
$0.34
$1.03
$0.37
$0.70
$3.10
$0.82
CA residents see p. 106 for Prop 65 Warning.
