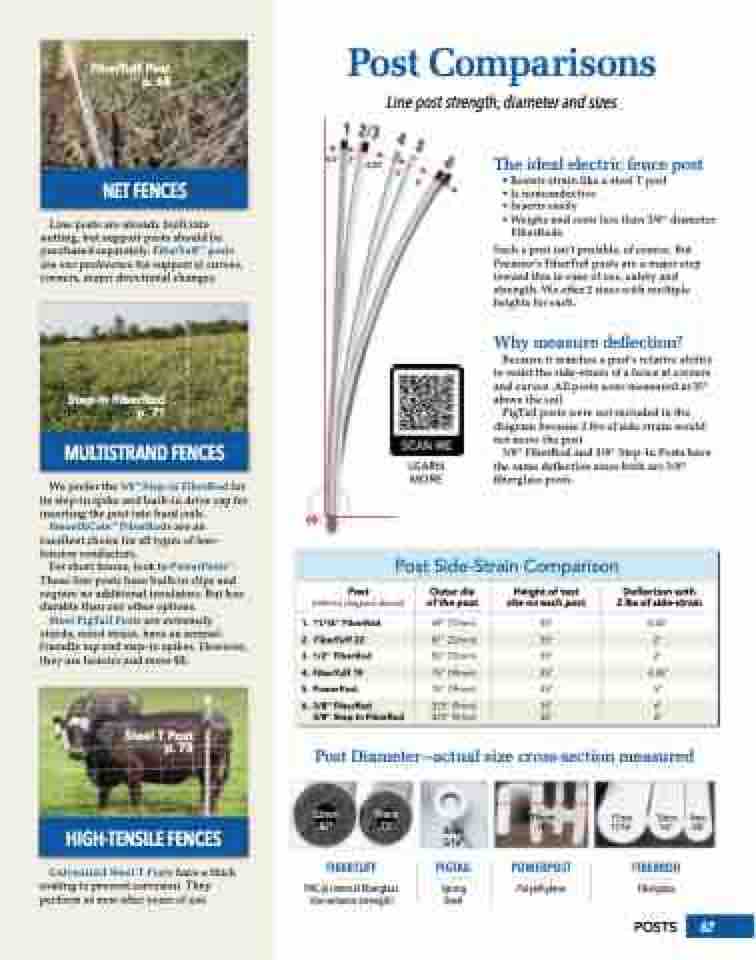

Page 67 - 2025 Premier Digital Fence Catalog

FiberTuff Post
p. 68
NET FENCES
Line posts are already built into
netting, but support posts should be
purchased separately. FiberTuff™ posts
are our preference for support at curves,
corners, major directional changes.
Step-In FiberRod
p. 71
MULTISTRAND FENCES
We prefer the 3/8" Step-in FiberRod for
its step-in spike and built-in drive cap for
inserting the post into hard soils.
SmoothCote™ FiberRods are an
excellent choice for all types of low-
tension conductors.
For short fences, look to PowerPosts™
.
These line posts have built-in clips and
require no additional insulators. But less
durable than our other options.
Steel PigTail Posts are extremely
sturdy, resist strain, have an animal-
friendly top and step-in spikes. However,
they are heavier and more $$.
Steel T Post
p. 73
HIGH-TENSILE FENCES
Galvanized Steel T Posts have a thick
coating to prevent corrosion. They
perform as new after years of use.
Post Comparisons
Line post strength, diameter and sizes
0.5" 2"
4.25"
5"
6"
LEARN
MORE
The ideal electric fence post
• Resists strain like a steel T post
• Is nonconductive
• Inserts easily
• Weighs and costs less than 3/8" diameter
FiberRods
Such a post isn’t possible, of course. But
Premier’s FiberTuff posts are a major step
toward this in ease of use, safety and
strength. We offer 2 sizes with multiple
heights for each.
Why measure deflection?
Because it matches a post’s relative ability
to resist the side-strain of a fence at corners
and curves. All posts were measured at 35"
above the soil.
PigTail posts were not included in the
diagram because 2 lbs of side strain would
not move the post.
3/8" FiberRod and 3/8" Step-In Posts have
the same deflection since both are 3/8"
fiberglass posts.
90˚
Post Side-Strain Comparison
Post (refer to diagram above) Outer dia of the post Height of test site on each post Deflection with
2 lbs of side-strain
1. 11/16" FiberRod .69" (17mm) 35" 0.50"
2. FiberTuff 22 .87" (22mm) 35" 2"
3. 1/2" FiberRod .50" (13mm) 35" 2"
4. FiberTuff 19 .75" (19mm) 35" 4.25"
5. PowerPost .75" (19mm) 35" 5"
6. 3/8" FiberRod 3/8" Step-In FiberRod .375" (9mm) .375" (9mm) 35" 35" 6"
6"
Post Diameter—actual size cross-section measured
22mm
.87"
19mm
.75"
19mm
.75"
17mm
11/16"
13mm
1/2"
9mm
3/8"
8mm
5/16"
FIBERTUFF
PIGTAIL
POWERPOST
FIBERROD
PVC (6 internal fiberglass
ribs enhance strength)
Spring
Steel
Polyethylene
Fiberglass
POSTS 67
