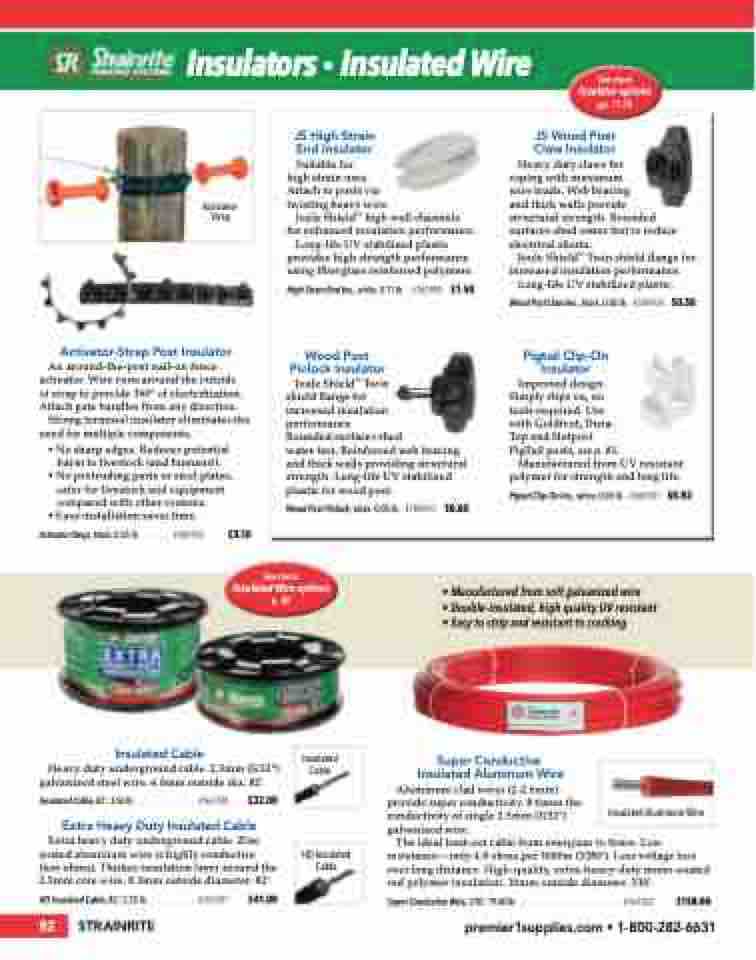

Page 82 - 2025 Premier Digital Fence Catalog

Insulators • Insulated Wire
See more
Insulator options
pp. 71-74
Activator-
Strap
JS High Strain
End Insulator
Suitable for
high strain uses.
Attach to posts via
twisting heavy wire.
Joule Shield™ high wall channels
for enhanced insulation performance.
Long-life UV stabilized plastic
provides high strength performance
using fiberglass reinforced polymers.
High Strain End Ins., white, 0.11 lb. .....#380905 $1.50
JS Wood Post
Claw Insulator
Heavy duty claws for
coping with maximum
wire loads. Web bracing
and thick walls provide
structural strength. Rounded
surfaces shed water fast to reduce
electrical shorts.
Joule Shield™ Twin shield flange for
increased insulation performance.
Long-life UV stabilized plastic.
Wood Post Claw Ins., black, 0.05 lb....#380904 $0.58
Activator-Strap Post Insulator
An around-the-post nail-on fence
activator. Wire runs around the outside
of strap to provide 360° of electrification.
Attach gate handles from any direction.
Strong terminal insulator eliminates the
need for multiple components.
• No sharp edges. Reduces potential
harm to livestock (and humans!).
• No protruding parts or steel plates,
safer for livestock and equipment
compared with other systems.
• Easy installation saves time.
Activator-Strap, black, 0.25 lb. ..................#380902 $3.10
Wood Post
Pinlock Insulator
Joule Shield™ Twin
shield flange for
increased insulation
performance.
Rounded surfaces shed
water fast. Reinforced web bracing
and thick walls providing structural
strength. Long-life UV stabilized
plastic for wood post.
Wood Post Pinlock, black, 0.05 lb. ... #380903 $0.60
Pigtail Clip-On
Insulator
Improved design.
Simply clips on, no
tools required. Use
with Goldfoot, Dura-
Top and Hotpost
PigTail posts, see p. 81.
Manufactured from UV resistant
polymer for strength and long life.
Pigtail Clip-On Ins., white, 0.03 lb....#380901 $0.82
See more
Insulated Wire options
p. 89
• Manufactured from soft galvanized wire
• Double-insulated, high quality UV resistant
• Easy to strip and resistant to cracking
Insulated
Cable
Insulated Aluminum Wire
Insulated Cable
Heavy duty underground cable. 2.5mm (3/32")
galvanized steel wire. 6.0mm outside dia. 82'.
Insulated Cable, 82', 3.96 lb. .................................#164300 $32.00
Extra Heavy Duty Insulated Cable
Extra heavy duty underground cable. Zinc
coated aluminum wire is highly conductive
(low ohms). Thicker insulation layer around the
2.5mm core wire. 8.3mm outside diameter. 82'.
HD Insulated Cable, 82', 5.25 lb...........................#164301 $41.00
82 Super Conductive
Insulated Aluminum Wire
Aluminum clad wires (2-2.6mm)
provide super conductivity. 8 times the
conductivity of single 2.5mm (3/32")
galvanized wire.
The ideal lead-out cable from energizer to fence. Low
resistance—only 4.0 ohms per 1000m (3280'). Less voltage loss
over long distance. High-quality, extra-heavy-duty mono-coated
red polymer insulation. 10mm outside diameter. 330'.
Super Conductive Wire, 330', 19.40 lb. ........................................................#164302 $158.00
STRAINRITE premier1supplies.com • 1-800-282-6631
HD Insulated
Cable
