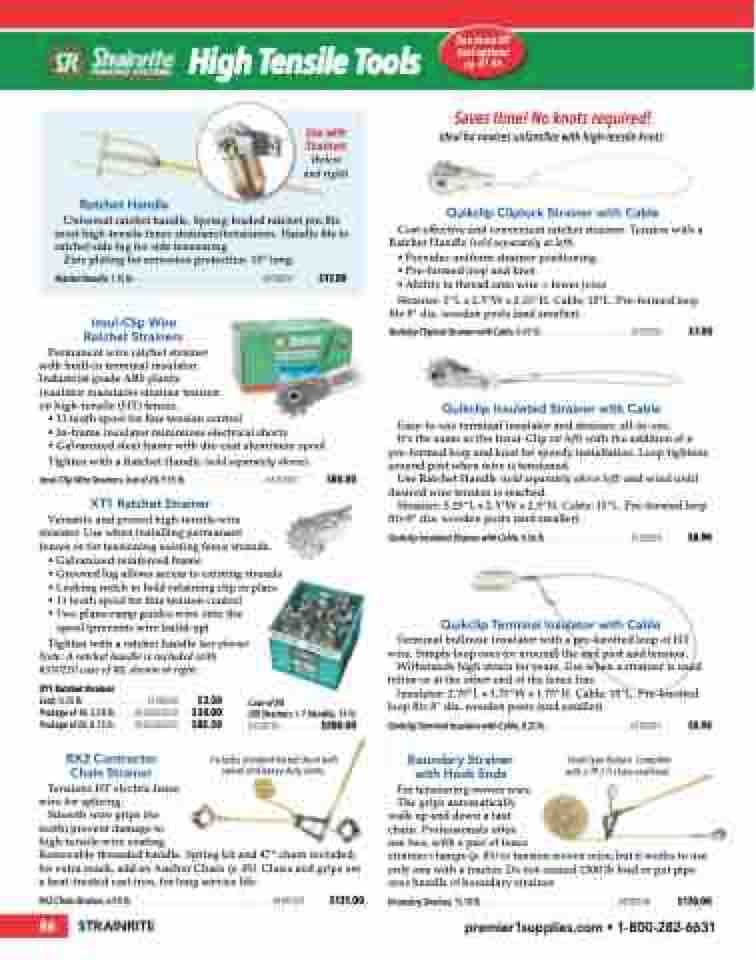

Page 86 - 2025 Premier Digital Fence Catalog

High Tensile Tools
See more HT
tool options
pp. 87–88
Use with
Strainers
(below
and right)
Ratchet Handle
Universal ratchet handle. Spring-loaded ratchet pin fits
most high-tensile fence strainers/tensioners. Handle fits to
ratchet side lug for side tensioning.
Zinc plating for corrosion protection. 13" long.
Ratchet Handle, 1.15 lb...................................................................#408003 $17.00
Saves time! No knots required!
Ideal for novices unfamiliar with high-tensile knots
Quikclip Cliplock Strainer with Cable
Cost effective and convenient ratchet strainer. Tension with a
Ratchet Handle (sold separately at left).
• Provides uniform strainer positioning
• Pre-formed loop and knot
• Ability to thread onto wire = fewer joins
Strainer: 5"L x 2.5"W x 2.25"H. Cable: 15"L. Pre-formed loop
fits 8" dia. wooden posts (and smaller).
Quikclip Cliplock Strainer with Cable, 0.45 lb...............................................#330202 $7.00
Insul-Clip Wire
Ratchet Strainers
Permanent wire ratchet strainer
with built-in terminal insulator.
Industrial grade ABS plastic
insulator maintains strainer tension
on high-tensile (HT) fences.
• 11 tooth spool for fine tension control
• In-frame insulator minimizes electrical shorts
• Galvanized steel frame with die-cast aluminum spool
Tighten with a Ratchet Handle (sold separately above).
Insul-Clip Wire Strainers, box of 20, 9.55 lb. ..........................................#330300 $85.00
XT1 Ratchet Strainer
Versatile and proved high-tensile wire
strainer. Use when installing permanent
fences or for tensioning existing fence strands.
• Galvanized reinforced frame
• Grooved lug allows access to existing strands
• Locking notch to hold retaining clip in place
• 11 tooth spool for fine tension control
• Two plane ramp guides wire onto the
spool (prevents wire build-up)
Tighten with a ratchet handle (see above).
Note: A ratchet handle is included with
#330210 case of 80, shown at right.
XT1 Ratchet Strainer
Each, 0.35 lb................................. #330200 $3.50
Package of 10, 3.50 lb...........#330200Z10 Package of 25, 8.75 lb...........#330200Z25 $34.00
$82.50
Case of 80
(80 Strainers + 1 Handle), 34 lb
#330210......................$280.00
Quikclip Insulated Strainer with Cable
Easy-to-use terminal insulator and strainer, all-in-one.
It’s the same as the Insul-Clip (at left) with the addition of a
pre-formed loop and knot for speedy installation. Loop tightens
around post when wire is tensioned.
Use Ratchet Handle (sold separately above left) and wind until
desired wire tension is reached.
Strainer: 5.25"L x 2.5"W x 2.5"H. Cable: 15"L. Pre-formed loop
fits 8" dia. wooden posts (and smaller).
Quikclip Insulated Strainer with Cable, 0.56 lb. ............................................#330204 $8.90
Quikclip Terminal Insulator with Cable
Terminal bullnose insulator with a pre-knotted loop of HT
wire. Simply loop over (or around) the end post and tension.
Withstands high strain for years. Use when a strainer is used
inline or at the other end of the fence line.
Insulator: 2.75"L x 1.75"W x 1.75"H. Cable: 15"L. Pre-knotted
loop fits 8" dia. wooden posts (and smaller).
Quikclip Terminal Insulator with Cable, 0.20 lb............................................#330203 $5.95
RX2 Contractor
Chain Strainer
Includes standard tested chain with
swivel and heavy-duty rivets.
Tensions HT electric fence
wire for splicing.
Smooth wire grips (no
teeth) prevent damage to
high-tensile wire coating.
Removable threaded handle. Spring kit and 47" chain included;
for extra reach, add an Anchor Chain (p. 85). Claws and grips are
a heat-treated cast iron, for long service life.
RX2 Chain Strainer, 6.90 lb. ..........................................................................#408309 $131.00
86 Boundary Strainer
with Hook Ends
Hook type feature. Complete
with a 19.7 ft chain and hook.
For tensioning woven wire.
The grips automatically
walk up and down a taut
chain. Professionals often
use two, with a pair of fence
strainer clamps (p. 85) to tension woven wire, but it works to use
only one with a tractor. Do not exceed 1300 lb load or put pipe
over handle of boundary strainer.
Boundary Strainer, 15.10 lb. .......................................................................#408308 $170.00
STRAINRITE premier1supplies.com • 1-800-282-6631
