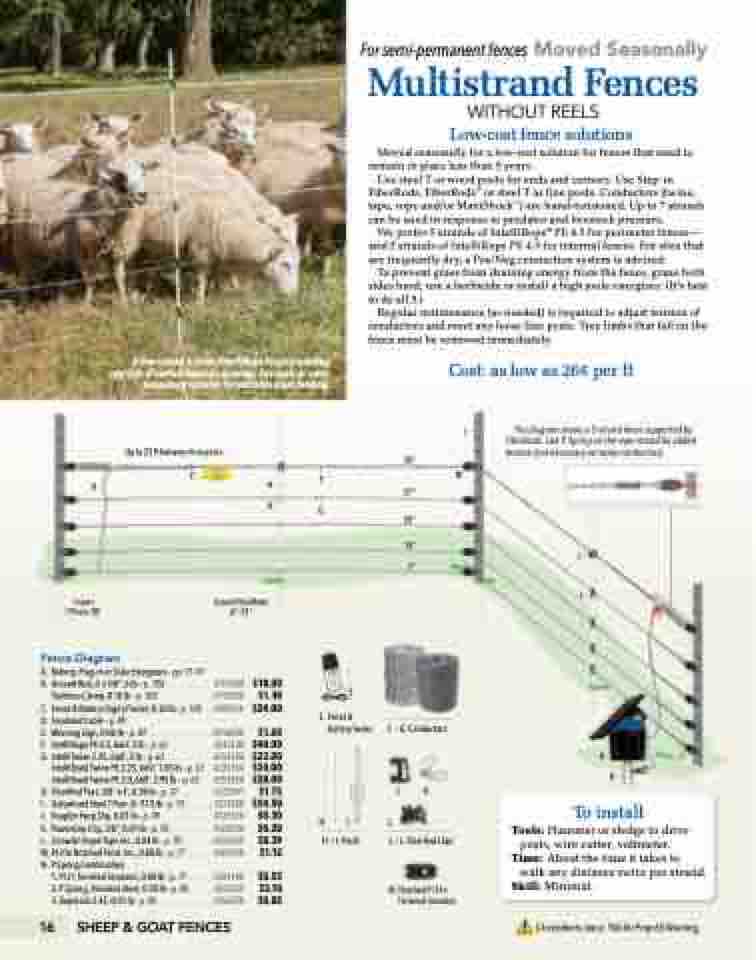

Page 16 - 2025 Premier Digital Fence Catalog

A five-strand 4.5mm IntelliRope fence providing
one side of containment for grazing. Use reels or other
temporary systems for portable cross fencing.
For semi-permanent fences Moved Seasonally
Multistrand Fences
WITHOUT REELS
Low-cost fence solutions
Moved seasonally for a low-cost solution for fences that need to
remain in place less than 5 years.
Use steel T or wood posts for ends and corners. Use Step-in
FiberRods, FiberRods™ or steel T as line posts. Conductors (twine,
tape, rope and/or MaxiShock™) are hand-tensioned. Up to 7 strands
can be used in response to predator and livestock pressure.
We prefer 5 strands of IntelliRope® PE 4.5 for perimeter fences—
and 3 strands of IntelliRope PE 4.5 for internal fences. For sites that
are frequently dry, a Pos/Neg connection system is advised.
To prevent grass from draining energy from the fence, graze both
sides hard, use a herbicide or install a high joule energizer. (It’s best
to do all 3.)
Regular maintenance (as needed) is required to adjust tension of
conductors and reset any loose line posts. Tree limbs that fall on the
fence must be removed immediately.
Cost: as low as 26¢ per ft
Up to 25 ft between line posts
E
I
M
The diagram shows a 5-strand fence supported by
FiberRods. Use P Spring on the rope strand for added
tension (not necessary on twine conductors).
D
H
K
F
G
36"
27"
20"
13"
7"
N.
3 2 1
L
J
16 Insert
T Posts 18"
Insert FiberRods
6"–12"
Fence Diagram
A. B. Battery, Plug-in or Solar Energizers – pp. 91–97
Ground Rod, 6' x 5/8", 6 lb – p. 100. ......................... #151000 Stainless Clamp, 0.10 lb – p. 100. ............................. #151800 C. Fence & Battery Digital Tester, 0.30 lb – p. 100......#200010 $18.00
$1.30
$24.00
D. Insulated Cable – p. 89
E. Warning Sign, 0.06 lb – p. 89...................................#346000 $1.60
F. IntelliRope PE 4.5, 660', 5 lb – p. 62........................ #245100 G. IntelliTwine 2.25, 660', 2 lb – p. 63. .........................#253500 IntelliBraid Twine PE 2.25, 660', 1.85 lb – p. 63.....#235360 IntelliBraid Twine PE 3.0, 660', 2.95 lb – p. 63. .......#253530 H. FiberRod Post, 3/8" x 4', 0.38 lb – p. 72................... #321841 I. Galvanized Steel T Post, 6', 9.13 lb – p. 73. ............... #327600 J. SnapOn Harp Clip, 0.01 lb – p. 78............................ #325310 K. PowerGrip Clip, 3/8", 0.01 lb – p. 78........................#325000 L. ScrewOn Rope/Tape Ins., 0.04 lb – p. 78.................#325400 M. PI 21n Notched Term. Ins., 0.08 lb – p. 77...............#369200 $40.00
$23.00
$24.00
$28.00
$1.75
$24.50
$0.30
$0.20
$0.39
$1.12
N. P Spring Combination
1. PI 21 Terminal Insulator, 0.08 lb – p. 77..............#369100 2. P Spring, Stainless Steel, 0.30 lb – p. 90............. #255010 3. RopeLink 2.45, 0.01 lb – p. 90. .............................#256220 $0.53
$3.10
$0.82
SHEEP & GOAT FENCES C. Fence &
Battery Tester
F. – G. Conductors
A
B
H.
I.
J. K.
L.
H. – I. Posts
J. – L. FiberRod Clips
M. Notched PI 21n
Terminal Insulator
To install
Tools: Hammer or sledge to drive
posts, wire cutter, voltmeter.
Time: About the time it takes to
walk any distance twice per strand.
Skill: Minimal.
CA residents see p. 106 for Prop 65 Warning.
