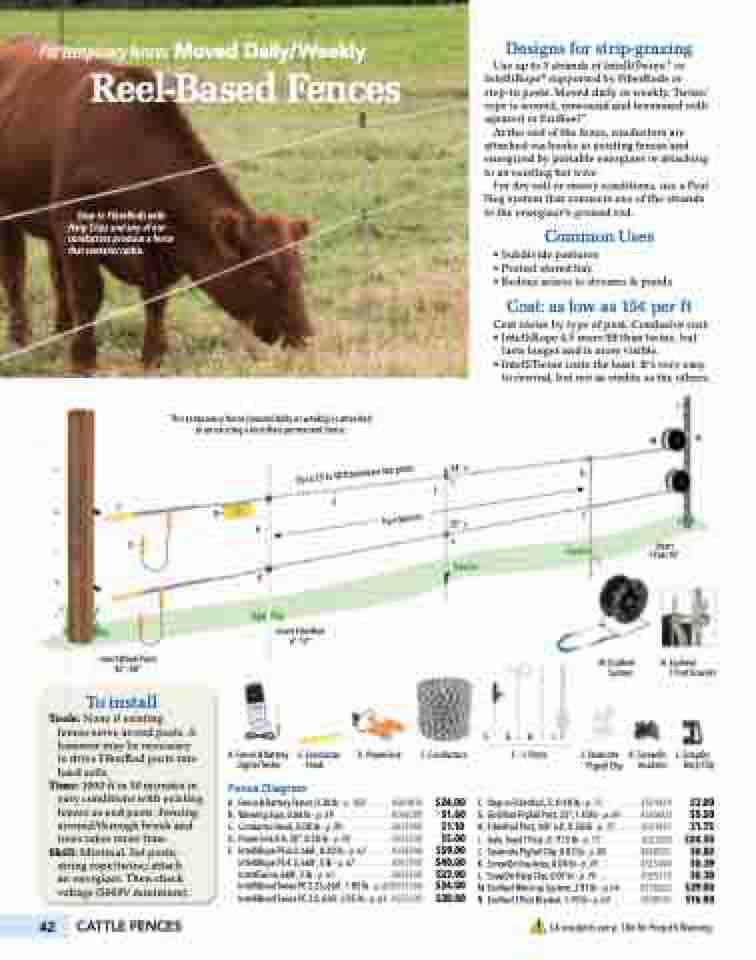

Page 42 - 2025 Premier Digital Fence Catalog

For temporary fences Moved Daily/Weekly
Reel-Based Fences
Step-In FiberRods with
Harp Clips and any of our
conductors produce a fence
that contains cattle.
_
+
_
+
_
This temporary fence (moved daily or weekly) is attached
to an existing electrified permanent fence.
Up to 25 to 40 ft between line posts
C E
B
Post Options
F
34" +
L
22" +
L
D
H
K
Designs for strip-grazing
Use up to 3 strands of IntelliTwine™
or
IntelliRope® supported by FiberRods or
step-in posts. Moved daily or weekly. Twine/
rope is wound, unwound and tensioned with
ageared or EcoReel™
.
At the end of the fence, conductors are
attached via hooks to existing fences and
energized by portable energizer or attaching
to an existing hot wire.
For dry soil or snowy conditions, use a Pos/
Neg system that connects one of the strands
to the energizer’s ground rod.
Common Uses
• Subdivide pastures
• Protect stored hay
• Reduce access to streams & ponds
Cost: as low as 15¢ per ft
Cost varies by type of post. Conductor cost:
• IntelliRope 4.5 more $$ than twine, but
lasts longer and is more visible.
• IntelliTwine costs the least. It’s very easy
to rewind, but not as visible as the others.
I
M
N
G
J
Insert
T Post 18"
Insert FiberRod
6"–12"
Insert Wood Posts
42"–48"
M. EcoReel
System
N. EcoReel
T Post Bracket
To install
Tools: None if existing
fences serve as end posts. A
hammer may be necessary
to drive FiberRod posts into
hard soils.
Time: 1000 ft in 30 minutes in
easy conditions with existing
fences as end posts. Fencing
around/through brush and
trees takes more time.
Skill: Minimal. Set posts;
string rope/twine; attach
an energizer. Then check
voltage (3000V minimum).
42 CATTLE FENCES F. G. H. I.
A. Fence & Battery
C. Conductor
Digital Tester
Hook
D. PowerLink
E. Conductors F. – I. Posts J. Strainrite
Fence Diagram
A. Fence & Battery Tester, 0.30 lb – p. 100. ............. #200010 B. Warning Sign, 0.06 lb – p. 89..............................#346000 C. Conductor Hook, 0.08 lb – p. 89. ..........................#237400 D. PowerLink 4.0, 30", 0.20 lb – p. 90..................... #335500 E. IntelliRope PE 6.0, 660', 8.20 lb – p. 62. ............. #256900 IntelliRope PE 4.5, 660', 5 lb – p. 62....................#245100 IntelliTwine, 660', 2 lb – p. 63. ............................. #253500 IntelliBraid Twine PE 2.25, 660', 1.85 lb – p. 63.#235360 IntelliBraid Twine PE 3.0, 660', 2.95 lb – p. 63. .. #253530 $24.00
$1.60
$1.10
$5.00
$59.00
$40.00
$23.00
$24.00
$28.00
Pigtail Clip
K. ScrewOn
Insulator
L. SnapOn
Harp Clip
F. Step-In FiberRod, 3', 0.40 lb – p. 71.....................#321834 G. Goldfoot PigTail Post, 33", 1.10 lb – p. 69........... #320600 H. FiberRod Post, 3/8" x 4', 0.38 lb – p. 72...............#321841 I. Galv. Steel T Post, 6', 9.13 lb – p. 73......................#327600 J. Strainrite PigTail Clip, 0.03 lb – p. 80.................. #380901 K. ScrewOn Insulator, 0.04 lb – p. 78...................... #325400 L. SnapOn Harp Clip, 0.01 lb – p. 78........................#325310 M. EcoReel Wind-up System, 3.91 lb – p. 64........... #238603 N. EcoReel T Post Bracket, 1.70 lb – p. 64................ #238501 $3.00
$5.50
$1.75
$24.50
$0.82
$0.39
$0.30
$29.00
$16.00
CA residents see p. 106 for Prop 65 Warning.
